Disc-type Diffuser
Disc-type membrane diffuser
Disc-type circular diffuser with micro-porous high-elasticity disc membrane that efficiently disperses and supplies oxygen into the wastewater by supplying air from the blower in the sewage and wastewater treatment plant to water in the reaction tank
Technology innovation for the future
EcoOne Technologies is making its utmost efforts by selecting the water treatment business as a new future growth engine. With ample construction experiences accumulated in the water treatment field, we strive to become one of the best companies by collaborating with domestic and overseas technology partners.

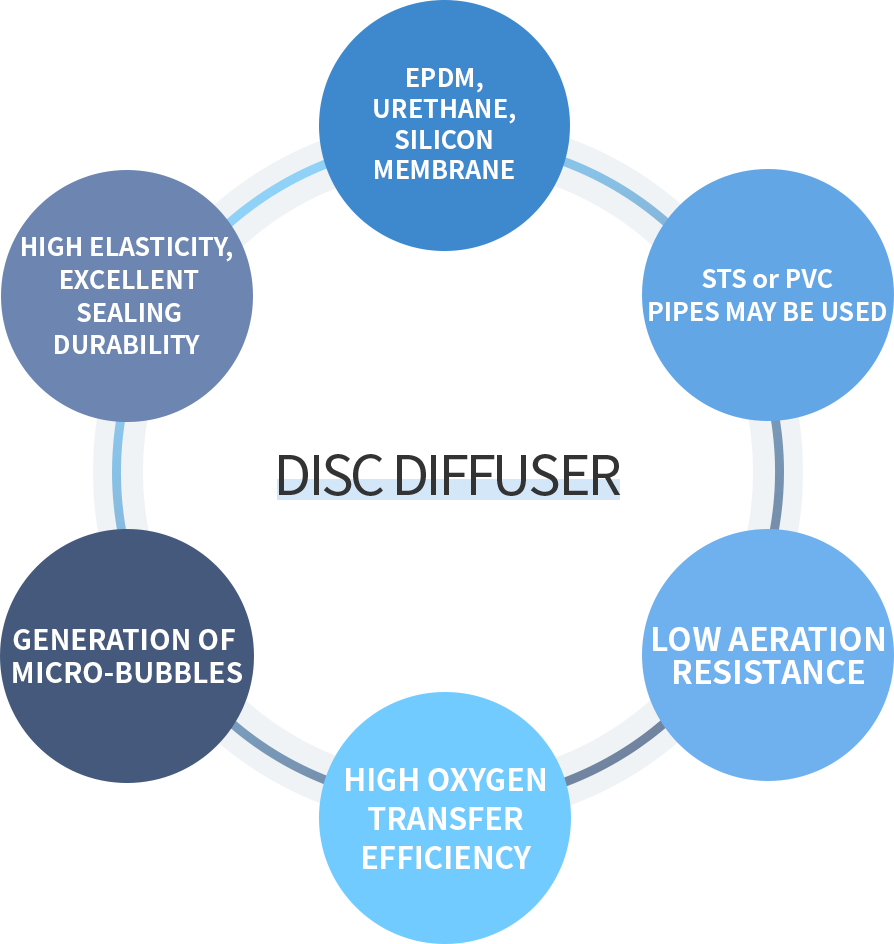

Characteristic
Micro-porous high-elasticity disc membrane- Uniform intervals and a large number of diffusers
- Outer circumferential ring coupled diffuser shape maintenance technology
- High-durability membrane disc

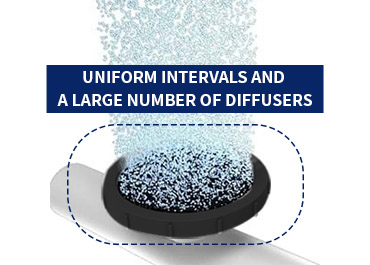

- Uniform intervals and a large number of diffusers
- Increased efficiency by securing a large number of pores
- Processing of fine pores with uniform intervals
- Securing a large number of pores per unit area

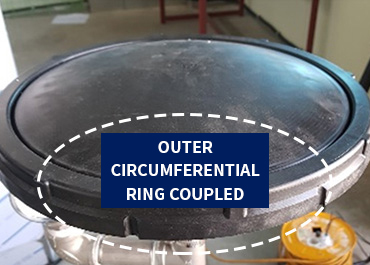

- Outer circumferential ring coupled diffuser shape maintenance technology
- Can prevent separation between the cover plate (membrane disc) and the main body base by fastening the fixture ring
- High-durability membrane disc
- Ethylene propylene diene polymer butyl rubber containing process oil
- High-elasticity, and excellent aeration properties due to high flexibility
- Excellent elasticity, low pressure loss, and longer life
Model
| No. | model name | diameter (mm) | airflow [L/min] |
oxygen transfer efficiency [per m] |
pressure loss [mmAq] |
No. of pores |
|---|---|---|---|---|---|---|
| 1 | EDD-09 | 270±10 | 50~120 | 5% or more | Less than 300 | 4,000 or more |
| 2 | EDD-12 | 350±10 | 120~150 | 5% or more | Less than 350 | 6,000 or more |
| 3 | EDD-20 | 520±20 | 150~250 | 5% or more | Less than 400 | 8,000 or more |
