Disc-type Diffuser

Disc-type membrane diffuser

Disc-type circular diffuser with micro-porous high-elasticity disc membrane that efficiently disperses and supplies oxygen into the wastewater by supplying air from the blower in the sewage and wastewater treatment plant to water in the reaction tank

Technology innovation for the future

EcoOne Technologies is making its utmost efforts by selecting the water treatment business as a new future growth engine. With ample construction experiences accumulated in the water treatment field, we strive to become one of the best companies by collaborating with domestic and overseas technology partners.

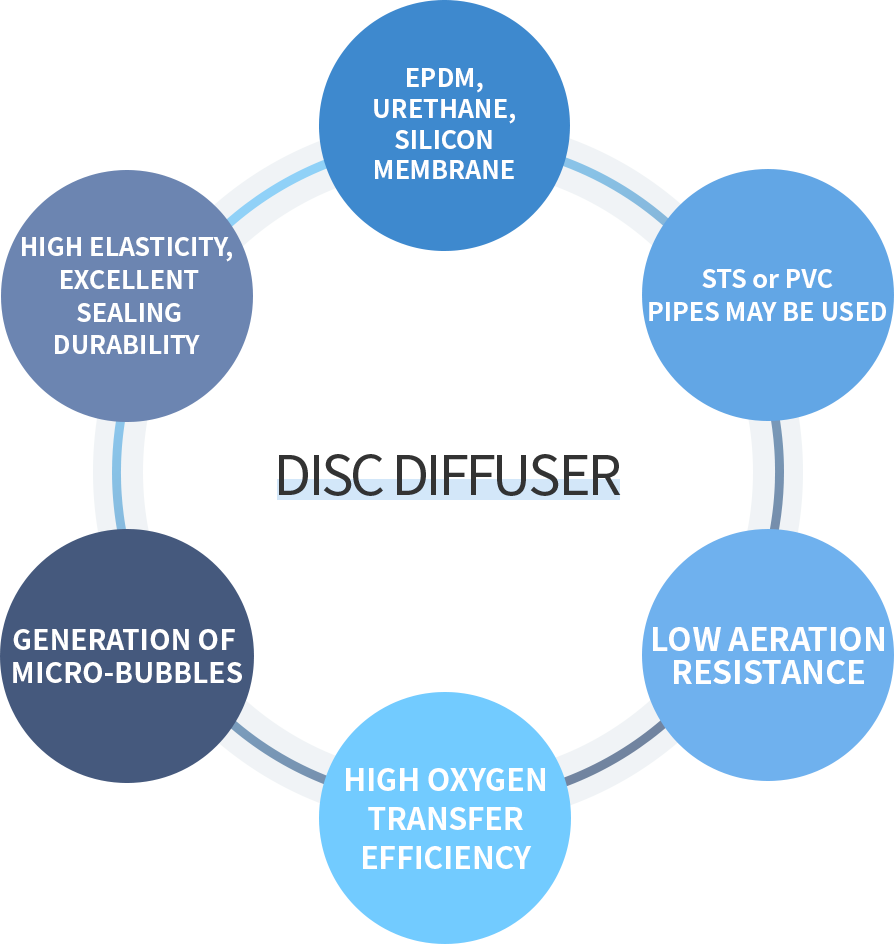

Characteristic

Micro-porous high-elasticity disc membrane

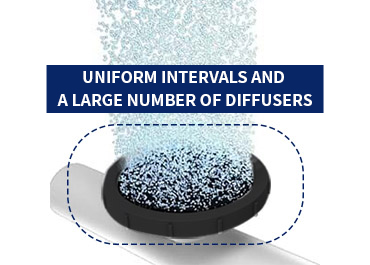

Uniform intervals and a large number of diffusers
Increased efficiency by securing a large number of pores
Processing of fine pores with uniform intervals
Securing a large number of pores per unit area

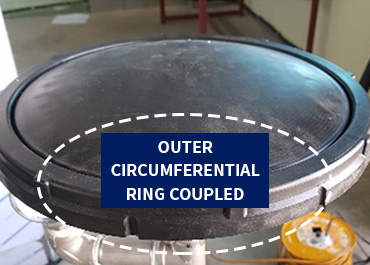

Outer circumferential ring coupled diffuser shape maintenance technology
Can prevent separation between the cover plate (membrane disc) and the main body base by fastening the fixture ring
High-durability membrane disc
Ethylene propylene diene polymer butyl rubber containing process oil
High-elasticity, and excellent aeration properties due to high flexibility
Excellent elasticity, low pressure loss, and longer life

Model

No. model name diameter (mm) airflow
[L/min]
oxygen transfer efficiency
[per m]
pressure loss
[mmAq]
No. of pores
1 EDD-09 270±10 50~120 5% or more Less than 300 4,000 or more
2 EDD-12 350±10 120~150 5% or more Less than 350 6,000 or more
3 EDD-20 520±20 150~250 5% or more Less than 400 8,000 or more
