Tube-type Diffuser
Tube-type membrane diffuser
A tube-type diffuser with micro-porous, high-elasticity disc-type membrane that efficiently distributes and supplies oxygen into the wastewater by supplying air from the blower in the sewage/wastewater treatment plant to water in the reaction tank.
Technology innovation for the future
EcoOne Technologies is making its utmost efforts by selecting the water treatment business as a new future growth engine. With ample construction experiences accumulated in the water treatment field, we strive to become one of the best companies by collaborating with domestic and overseas technology partners.

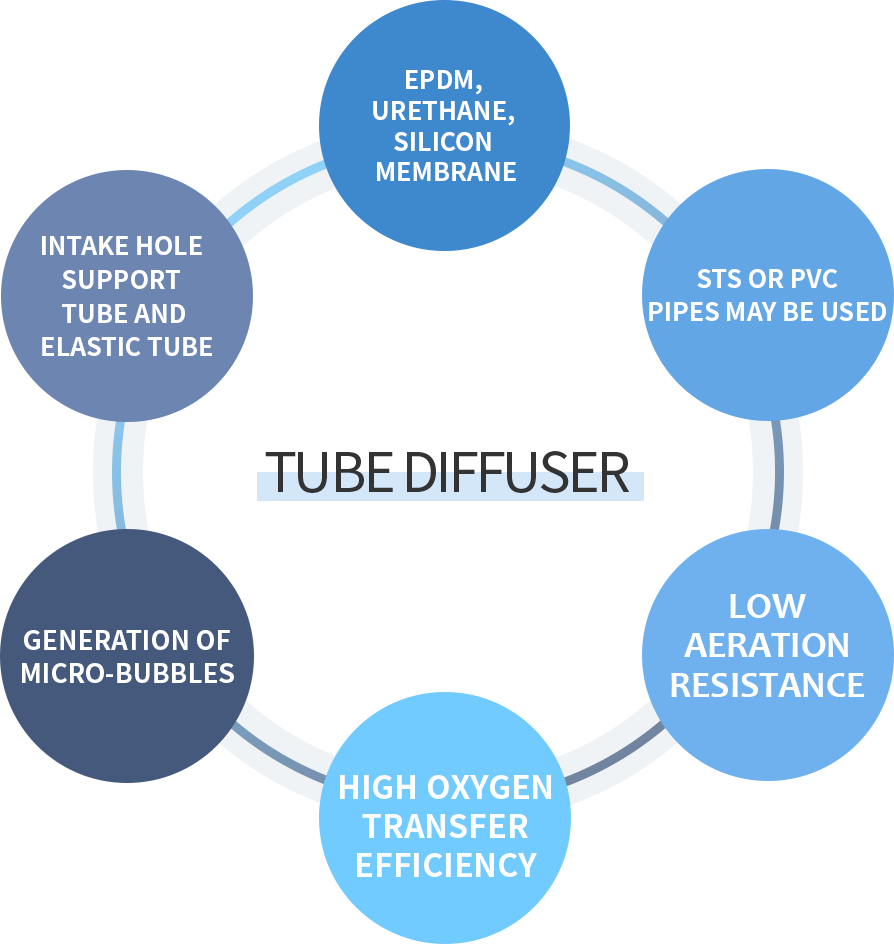

Characteristic
Tube-type diffuser using an air intake hole and elastic tubes with closed-off valves- Intake hole support tube and elastic tube
- Support pipe and tube defect using fixing groove
- External rotation groove and internal thread joint
- Intake hole support tube and elastic tube
- Comprised of 2 intake holes in the input and end support part
- Same pressure air supplied to the end
- The pressure applied to each diffuser pore is the same, extending the life of the elastic tube
- Support pipe and tube defect using fixing groove
- Low pressure loss applied to the tube from the input part to the end part by installing two upper and lower intake holes
- Improving the bonding properties by providing a fixing groove/locking threshold on the connecting part of the input part and the end part
- External rotation groove and internal thread joint
- Easy fastening without damaging the elastic tube of the support and air supply pipe by applying the coupling
- Prevents air leakage due to compression fastening of support and air supply pipes using rotating grooves
Model
| No. | Model | diameter (mm) | Length(mm) | airflow [L/min] |
Oxygen transfer efficiency [tap water per m] |
pressure loss [mmAq] |
minimum number of pores |
|---|---|---|---|---|---|---|---|
| 1 | EDT6-1000 | Ø64±2 | 1000±10 | 100~300 | 5%wt or more | 500 or more | 10,000 or more |
| 2 | EDT9-1000 | Ø94±2 | 1000±10 | 200~400 | 5%wt or more | Less than 600 | 15,000 or more |
